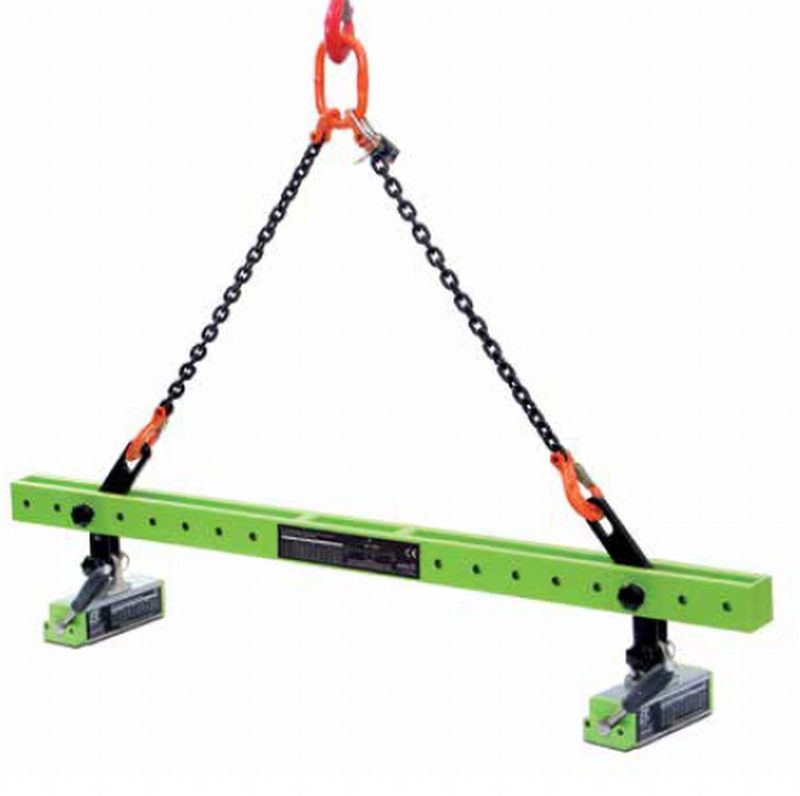

FX-LT3200
| Product Id | 9911043200-1 |
| Included FX Q.ty | 2 |
| Included FX Model | FX 2000 |
| Max. Load capacity Flat From | 50 mm |
| Max. Load capacity Flat | 3200 Kg |
| Max Load Dimensions Flat | 5000 x 2500 mm |
| Safety factor | 3.5 |
| Max. Operation temperature | 80 °C |
FX-LT3200
FX-LT3200
FX-LT3200
| Dimension L | 2000 mm |
| Dimension H | 480 mm |
| Weight | 305 Kg |
FX-LT3200
| Thikness | Load | Load Max Dimensions |
|---|---|---|
| Thikness >= 15 mm | Load 800 Kg | Load Max Dimensions 4000 x 2000 mm |
| Thikness >= 20 mm | Load 1600 Kg | Load Max Dimensions 5000 x 2000 mm |
| Thikness >= 25 mm | Load 1920 Kg | Load Max Dimensions 5000 x 2000 mm |
| Thikness >= 40 mm | Load 2560 Kg | Load Max Dimensions 5000 x 2500 mm |
| Thikness >= 50 mm | Load 3200 Kg | Load Max Dimensions 5000 x 2500 mm |
FX LT
| Model | Included FX Model | Max. Load | Max. Load dimensions |
Dimensions | Weight | |||
|---|---|---|---|---|---|---|---|---|
| Q.ty | Model | Load | From Thikness | L | B | |||
| FX-LT600 | 2 | FX P330 | 600 Kg | 10 mm | 4000x1500 mm | 1600 mm | 270 mm | 44 Kg |
| FX-LT700 | 2 | FX V400 | 700 Kg | 15 mm | 5000x1500 mm | 1600 mm | 270 mm | 44 Kg |
| FX-LT1000 | 2 | FX 600 | 1000 Kg | 20 mm | 5000x1500 mm | 1600 mm | 290 mm | 58 Kg |
| FX-LT1400 | 2 | FX V800 | 1400 Kg | 20 mm | 5000x2000 mm | 1600 mm | 360 mm | 86 Kg |
| FX-LT3200 | 2 | FX 2000 | 3200 Kg | 50 mm | 5000x2500 mm | 2000 mm | 480 mm | 305 Kg |
| FX-LT4800 | 2 | FX 3000 | 4800 Kg | 50 mm | 5000x2500 mm | 2000 mm | 600 mm | 410 Kg |
| Safety factor 3.5 | Test Method EN 13155 | Max Operating Temperature 80 °C | ||||||
Complete Range FX ACCESSORIES
Permanent magnetic trusses
FX LT
Magnetic lifting beam from 600 to 4800 kg
FX LT are suitable for the needs of sheet metal transformers, laser and flame cutters. Two FX-VV lifting magnets and a lightweight truss with two-hanger chain allow the horizontal handling of larger workpieces. The magnets can be removed from the truss in a few simple steps to lift small formats with just one magnet.
FX KT
Magnetic lifting beam from 240 to 480 kg
FX KT lift parts that cannot be picked up with a magnet in the center, such as rings and flanges. Two FX magnets with adjustable center distance, mounted on a high-strength aluminum truss, ensure a secure hold. With a few simple steps the magnets can be removed from the truss and used individually.
FX LT KT
SPECIAL SOLUTIONS
Vega Technik will assist you in designing and manufacturing special accessories tailored to your specific needs.
