Series FX \ FX PNEUMATIC

ModelFX-R450 PNE

FX-R450 PNE

Datasheet
Product Id11010459
Max. Load capacity Flat From20 mm
Max. Load capacity Flat450 Kg
Max. Load capacity Round FromØ 50-270 mm
Max. Load capacity Round450 Kg
Safety factor3.5
Max. Operation temperature 80 °C

FX-R450 PNE

FXPNE Product

FX-R450 PNE

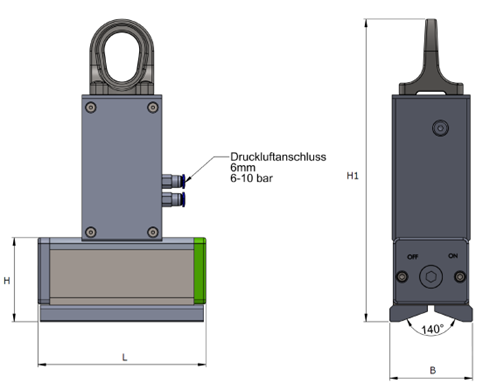

Schema
FXPNE Schema

FX-R450 PNE

Dimensions
Dimension L264 mm
Dimension B126 mm
Dimension H112 mm
Dimension H1324 mm
Weight25 Kg

FX-R450 PNE

Downloads
SVG Image
Magnetic lifter datasheet FX-R450 PNE
SVG Image
Lifting Magnet Drawing FX-R450 PNE
SVG Image
Lifting magnets catalog FX / FXE
SVG Image
Use and maintenance manual FX
SVG Image
Airgap and load dimensions for FX
SVG Image
Obbligation to test lifting magnets
SVG Image
Test values for initial test FX
SVG Image
Spare parts FX

FX PNEUMATIC

Available models
Model Max. Load Flat Max. Load Round Weight
From Thikness Load Diameter Load
FX-R100 PNE 8 mm 80 Kg Ø 25-150 mm 80 Kg 7 Kg
FX-R225 PNE 10 mm 225 Kg Ø 50-205 mm 225 Kg 12 Kg
FX-R450 PNE 20 mm 450 Kg Ø 50-270 mm 450 Kg 25 Kg
Safety factor 3.5 Test Method EN 13155 Max Operating Temperature 80 °C
