ELECTRO-PERMANENT MAGNETIC CHUCKS FXL-R

ModelFXL-R 900/50

FXL-R 900/50

Datasheet
Product Id2915 0900
Diameter900 mm
Height66 mm
Poles Q.ty108
Weight300 Kg
Control unitFXL-C

FXL-R 900/50

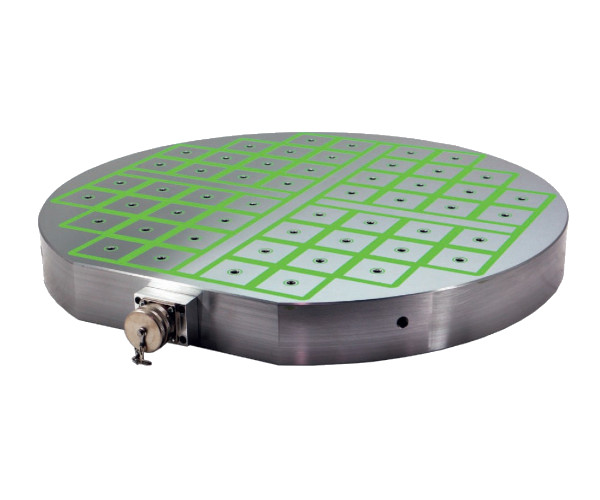

FXLR Product

FXL-R 900/50

Downloads
SVG Image
Datasheet FXL-R 900/50

FXL-R

Available models
Model Dimensions Poles Weight Control unit
Diameter Height
FXL-R 420/50 420 mm 66 mm 24 65 Kg FXL-C
FXL-R 600/50 600 mm 66 mm 24 135 Kg FXL-C
FXL-R 750/50 750 mm 66 mm 68 210 Kg FXL-C
FXL-R 900/50 900 mm 66 mm 108 300 Kg FXL-C
FXL-R 1000/70 1000 mm 66 mm 72 390 Kg FXL-C
FXL-R 1250/70 1250 mm 66 mm 120 550 Kg FXL-C
Other models and sizes available on request

Complete Range FXL

Electro-permanent Magnetic Chucks

FXL-50

Chucks with 50x50 poles

Available Products FXL-50
FXL-70

Chucks with 70x70 poles and 66 mm thickness

Available Products FXL-70
FXL-R

Round Chucks with height 66 mm

Available Products FXL-R
FXL-Block

Manufactured with one or more clamping surfaces and different pole sizes

Available Products FXL-Block
